SATONG Gravity Pallet Racks with Wheels for Easy Access

The shuttle car storage system is an advanced warehouse storage management model that has high storage density, convenient inbound and outbound storage, and high efficiency in inbound and outbound storage and retrieval. It has the ability to manage more types of goods than traditional drive in shelves, and can also achieve first in first out and first in last out functions. The entire system consists of dedicated shelves for shuttle cars and intelligent shuttle cars. After the expansion of functions, it can also be integrated with the automatic stacking system to form a more highly integrated fully automatic storage system.
The use of the shuttle car shelving system is very convenient. First, use a forklift to place the shuttle car at the front end of the track, which has an inclined cross-section for easy placement of the trolley. Then place the goods in the initial position on the track. At this time, operate the remote control and press the automatic storage button to transport the goods with pallets into the deep aisle for storage. At the same time as picking up the goods, place the trolley into the initial position of the track, press the automatic outbound button on the remote control, and the shuttle car will transport the goods to the end of the track. The forklift will remove them, complete the outbound action, and then turn to the next channel for operation. The shuttle car can also automatically switch between A/B sides, enabling the shuttle car to store and retrieve goods at both ends of the track.

advantage:
Because forklifts do not need to enter the shelves, it can reduce damage to the shelves.
※ Different categories of storage clusters can be stored through various modules.
Due to the smoothness of inbound and outbound operations, production can be increased.
Accurate and effective system for loading and unloading.
Reduce the time for unloading pallets.
Compatibility with trays of different sizes.
Suitable for low-temperature storage.

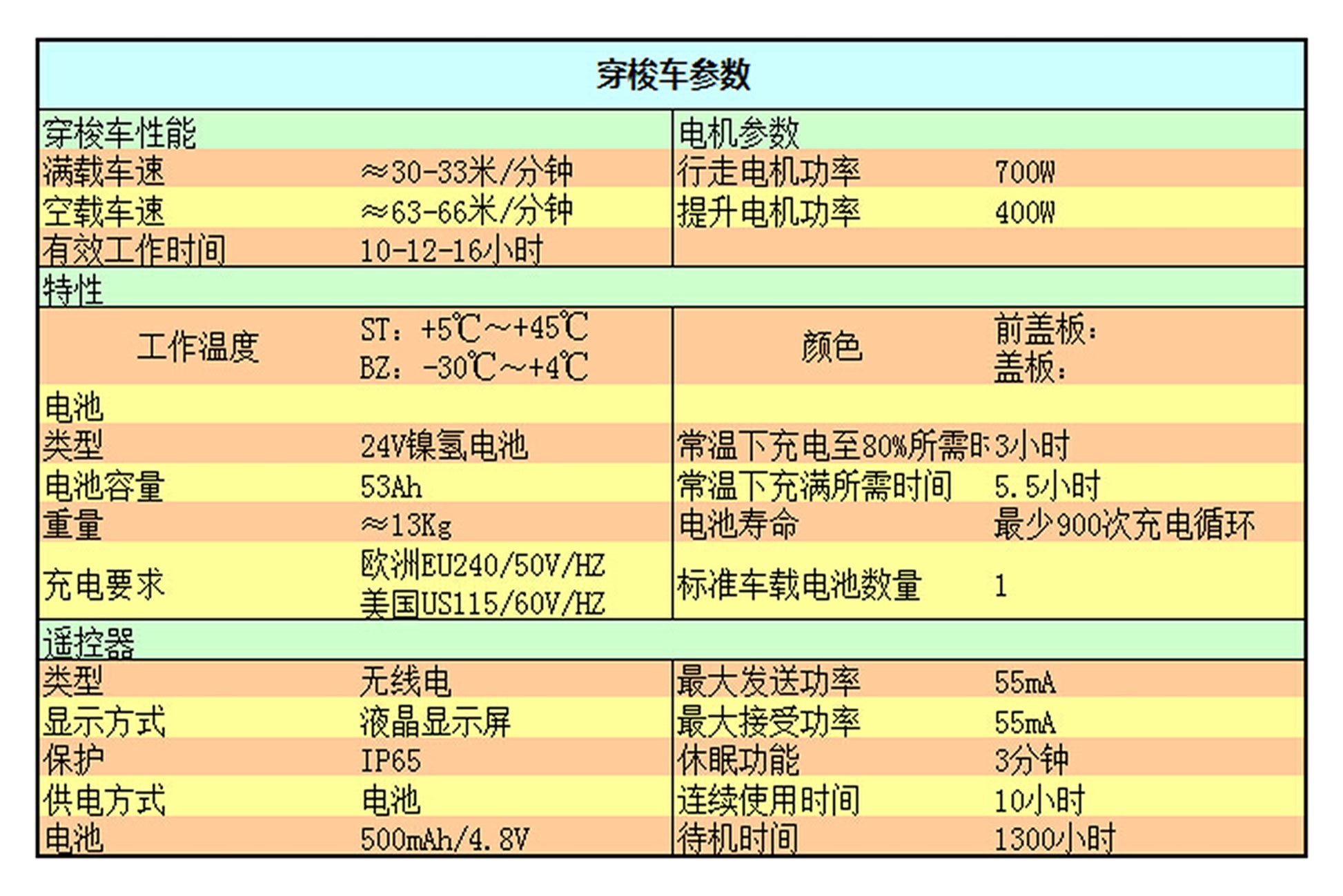

Main features of shuttle bus:
·High standard safety devices effectively protect the safety of goods and personnel;
·The spacing between pallets in the tunnel can be adjusted arbitrarily from 40-150mm every 10mm;
·Loading and unloading in automatic mode and continuous loading and unloading;
·Can achieve first in first out or first in second out;
·Easy to operate, quick response, and smooth operation;
·Having an operating mode suitable for cold storage with a minimum temperature of -30 ℃;
·We can customize shuttle buses according to customer needs;
·Easy maintenance and repair;
·Has multiple patented functions: tray counting function, efficient heavy sorting function, etc.
·High performance lithium battery: can be charged up to 1200 times at most; Only 5.2 hours of charging is needed to run continuously for 16 hours;
