Flexible crash barrier

Flexible crash barrier

Three Core Advantages


01 Tough & Impact-Resistant


Solves the pain points of traditional crash barriers, such as poor durability, easy deformation, paint peeling, and ground damage. Our technical solution is more suitable for modern market demands.

02 Easy Installation


Installation is simpler and more convenient, with shorter installation time and lower labor costs. It also has lower requirements for the ground foundation, making it adaptable to various site conditions.

03 High-Quality Material


The pipe is made of imported high-molecular raw materials with a three-layer co-extrusion process:

  • Excellent weather resistance and anti-aging properties; color is naturally formed during manufacturing, meeting the ISO 4892-3 standard for UV resistance.
  • Strong chemical resistance, no corrosion, and low chemical activity.
  • The base is connected to the anchor with heavy-duty anti-cracking mechanical anchors, and exposed metal parts are treated with black electrostatic spraying, passing neutral salt spray tests.


Product Parameters


表格
Item Details

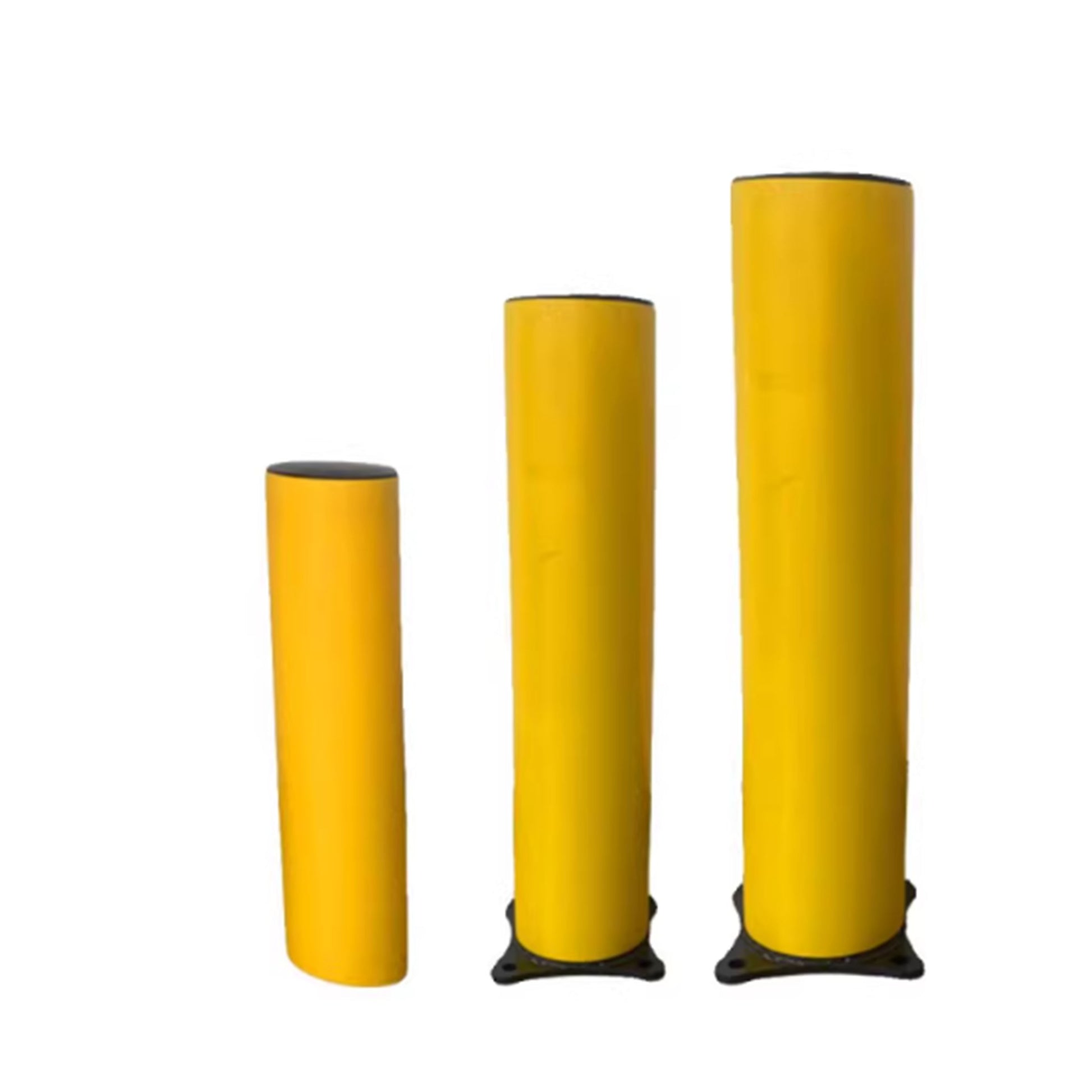

Product Name HDPE Flexible Crash Bollards
Product Structure Single Post Type, Combined Type
Wall Thickness 8.5mm – 10mm
Main Material High-Density Polymer
Height Customizable (Base 500MM + Calculated Height)
Post Diameter 110mm, 125mm, 160mm
Color Yellow / Black
Fixing Bolt Type M16*215mm
Operating Temperature -10°C ~ +50°C
Crash Resistance Standard Withstands impact from a 4-ton vehicle at 5–6 km/h

X indicates the highest energy absorption impact zone.


Impact Energy Absorption Performance


  • Absorbable Impact Energy: Forklift impacts the bollard at 90 degrees, at 200mm height

    • 2.0-ton vehicle at 5.0 km/h
    • 988 Joules
    • Deformation Coordination (90-degree center impact)

  • Absorbable Impact Energy: Forklift impacts the edge of the bollard at 90 degrees

    • 2.0-ton vehicle at 5.0 km/h
    • 988 Joules
    • Rotation Resistance (90-degree edge impact)

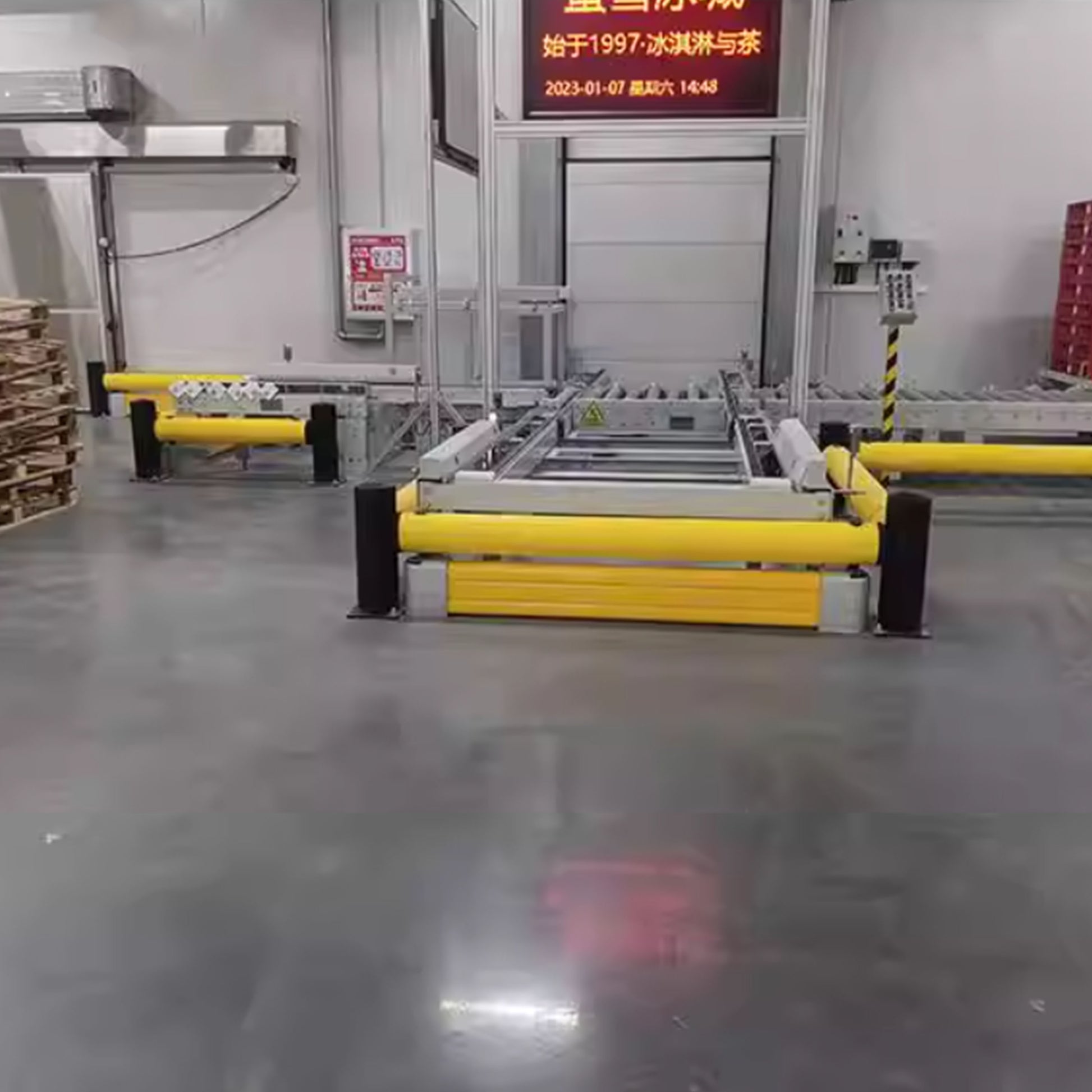

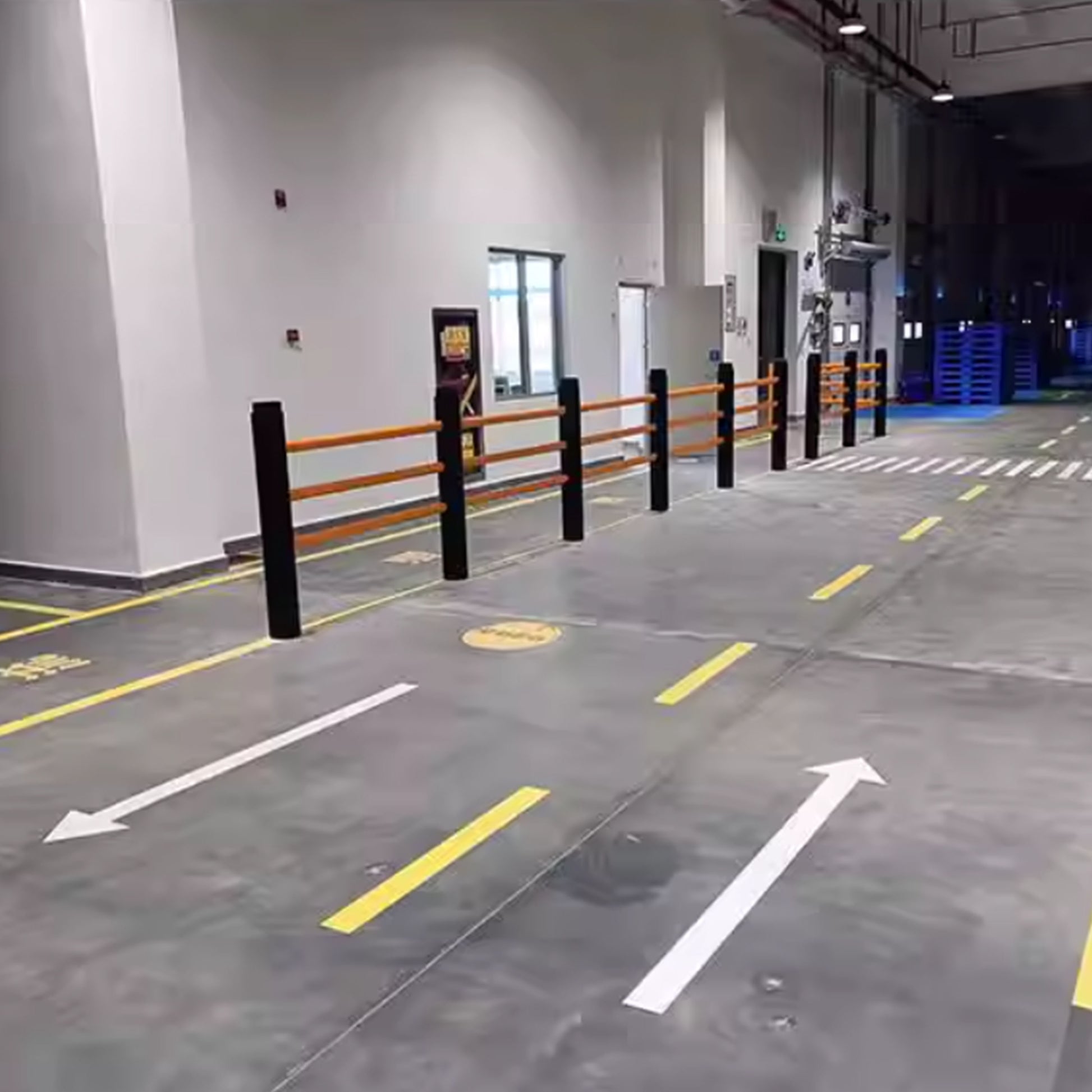

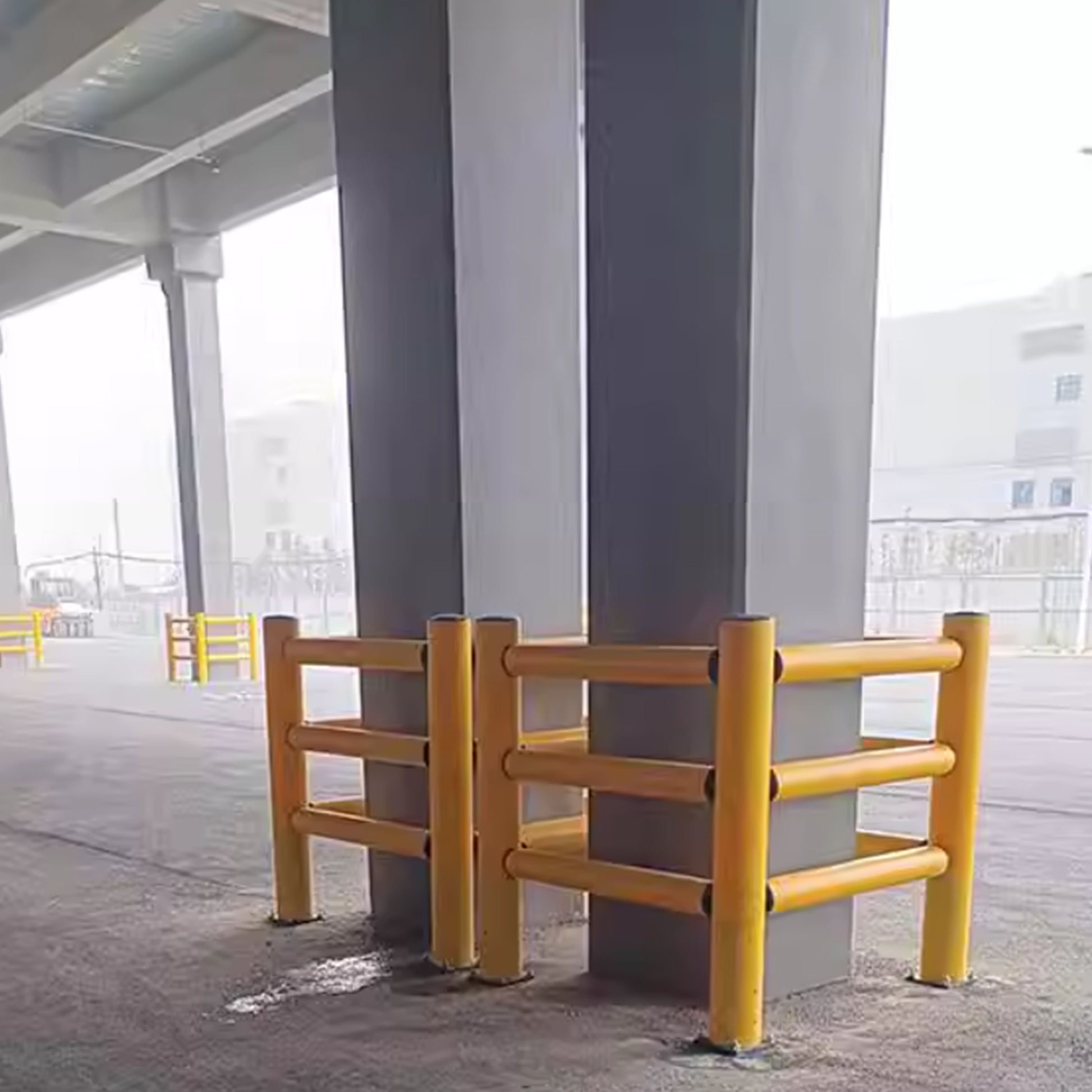

Wide Application Scenarios


  • Crowd Isolation

    Suitable for crowd isolation and diversion at stations, shopping malls, and entertainment venues.

  • Road Isolation

    Used for road separation to prevent pedestrians from crossing the road, enhancing the safety of vehicles and pedestrians.

  • Event Isolation

    Isolates crowds at large events to prevent congestion and accidental incidents.

  • Area Isolation

    Used for road and parking area separation to maintain order and avoid chaos.

View full details
Variant Variant total Quantity Price Variant total
110 diameter standard base (500mm height)
110 diameter standard base (500mm height)
$19.64/ea		 $0.00
$19.64/ea $0.00
125 diameter standard base (500mm height without base)
125 diameter standard base (500mm height without base)
$33.79/ea		 $0.00
$33.79/ea $0.00
125 diameter standard base (with a base for a height of 500mm)
125 diameter standard base (with a base for a height of 500mm)
$40.86/ea		 $0.00
$40.86/ea $0.00
160 diameter standard base (with a base at a height of 500mm)
160 diameter standard base (with a base at a height of 500mm)
$62.07/ea		 $0.00
$62.07/ea $0.00
63 diameter guardrail horizontal bar
63 diameter guardrail horizontal bar
$11.79/ea		 $0.00
$11.79/ea $0.00
90-diameter guardrail horizontal bar
90-diameter guardrail horizontal bar
$17.29/ea		 $0.00
$17.29/ea $0.00
110 diameter column tube (meter)
110 diameter column tube (meter)
$20.43/ea		 $0.00
$20.43/ea $0.00
125 diameter column tube (meter)
125 diameter column tube (meter)
$23.57/ea		 $0.00
$23.57/ea $0.00
160 diameter column tube (meter)
160 diameter column tube (meter)
$30.64/ea		 $0.00
$30.64/ea $0.00
